Large Electrical and Valve Lockout Station Double-Door Cabinet

Large Electrical and Valve Lockout Station Double-Door Cabinet

Product Item : BD-8751
Category： Lockout Station
Material: acrylic

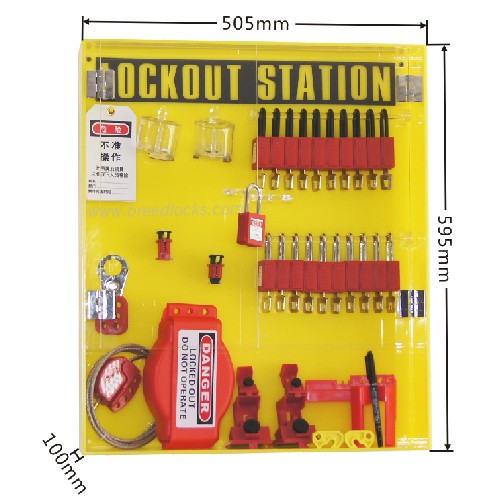

Size:595mm(H)*505mm(W)*100mm(T)
Install on wall with screws
INQUIRY EMAIL

Model	BD-8751	Brand	BREED
Product Name	Lockout Station	Place of Origin	Suzhou City, China
Certificate	CE	Material	Acrylic
Colors	Yellow	Capacity	20 padlocks and other lockouts

¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨¨

▶ The lock is made of acrylic.

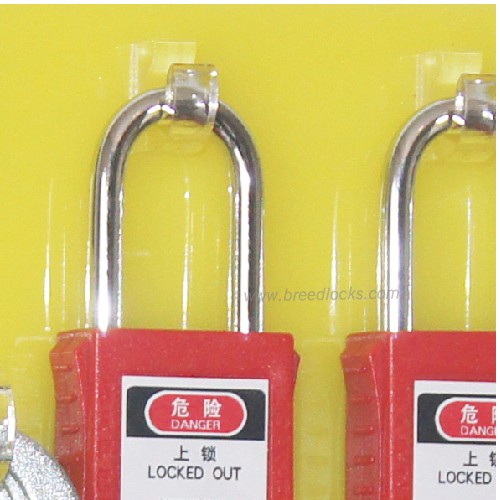

▶ It holds 20 padlocks, and other electrical and valve lockouts.

▶ Transparent double doors protect locks from dust and can be locked to prevents unauthorized use.

▶ Print logo is supported. Can be customized in small batches.

▶ BD-8751 is empty station, locks need to be purchased separately.

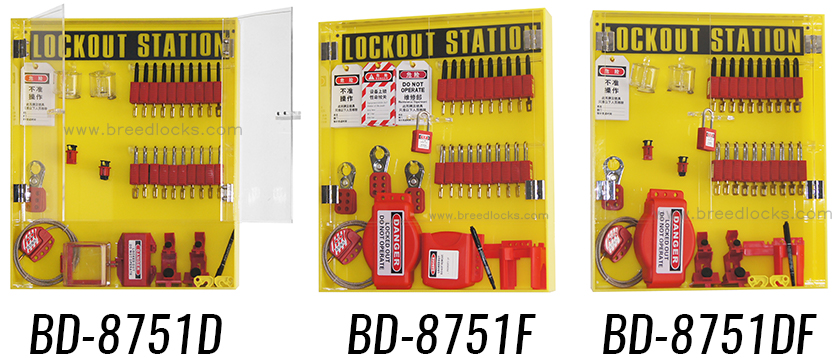

▷ BD-8751D is filled with most commonly used electrical lockouts.

▷ BD-8751F is filled with most commonly used valve lockouts.

▷ BD-8751DF is filled with most commonly used electrical and valve lockouts.

Quantity and types of locks can be increased or decreased according to your needs.

BD-8751D	BD-8751F	BD-8751DF
Including: 1 socket lock D63 1 plug lock D42 2 e-stop button locks D53 2 MCB locks D01 2 wide MCB locks D04 2 mini MCB locks D05 2 small clamp-on MCCB locks D11 2 medium clamp-on MCCB locks D12 3 1-inch hasps K01 1 cable lock L11 10 padlocks G01 10 nylon padlocks G11 30 tags P03 1 marker pen	Including: 1 adjustable ball valve lock F01 1 adjustable gate valve lock F16 1 flanged ball valve lock F08 3 1-inch hasps K01 1 cable lock L11 10 padlocks G01 10 nylon padlocks G11 30 tags P03 1 marker pen	Including: 1 adjustable ball valve lock F01 1 adjustable gate valve lock F16 2 e-stop button locks D53 2 MCB locks D01 2 wide MCB locks D04 2 mini MCB locks D05 2 small MCCB locks D11 2 medium MCCB locks D12 3 1-inch hasps K01 1 cable lock L11 10 padlocks G01 10 nylon padlocks G11 30 tags P03 1 marker pen

Suzhou BREED Locks Company is a Chinese factory established over 15 years. Specialize in safety padlocks, hasps, warning tags, cable locks, circuit breaker locks, valve locks and other lockout tagout products. Provide OEM & ODM services, customized packaging, and transportation routes for wholesalers and distributors. Drop-shipping and Amazon FBA services are also supported.
